PHYSIO is a complete 4-channel stimulator designed for all electrotherapy indications: Standard (TENS/NMES), Full (Neurology, ACL) and Denervated, Iontophoresis, Hyperhidrosis, Urology, Oedema prevention, Sport and Fitness. Optimum program configuration.

Features

Muscle Intelligence™ technology:
Physio includes 4 Mi cables. Muscle Intelligence™ functions are automatically available when the Mi cable is connected to the device.

4 MI functions available on all 4 channels:
Mi-Scan: a personal touch
This function uses the sensor to determine and adapt the optimal stimulation parameters for each patient and each session.
Mi-Action: patient participation
Combined active exercise allows the therapist to better integrate electrotherapy into treatments. With Mi-Action, patients can trigger stimulation with their own voluntary muscle contraction.
Mi-Tens: self-regulated pain therapy
Allows continuous control of the stimulation intensity level to eliminate unwanted contractions during an analgesic program.
Mi-Range: intensity control
Graphically shows the therapist the minimum and maximum intensity levels to achieve optimal muscle contractions in low-frequency programs (endorphinic type).

Trigger function (Theta and Physio only)
Starts a voluntary work phase where required by protocols (hemiplegic foot, spasticity)

2+2
Lets you choose a program for channels 1 and 2 and select another one from the list of 2+2 programs for channels 3 and 4. This makes it possible to treat two different body areas or two patients at the same time, or to combine TENS and NMES in a single treatment.

Skip
Manages session duration and skips directly to the next phase (recovery) when necessary.

Motor point pen
This useful tool, included in the kit together with the dedicated program, helps find the optimal electrode position.

I-Button
Allows you to adjust the intensity on all 4 channels simultaneously, access your 5 favourite programs directly or check statistics (number of contractions, intensity level) during sessions.

Pause mode
Pauses stimulation when electrodes need to be repositioned.

Programmability
Programs can be created and customised based on the patient's specific parameters.

Battery life and fast charging
Full-day battery life; with the charger included in the kit, a complete charging cycle takes a maximum of 2h30.

Pin-to-snap cables and adapters
The devices come with 4 pin cables + snap adapters to connect both pin electrodes and snap electrodes.

Warranty
The warranty is 3 years from the date of purchase.

Technical specifications
Medical device: Class IIa
Electrical protection: IP22
Electrical safety class: Class II, type BF
Complies with safety tests: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-10
Battery 941213: rechargeable nickel-metal hydride (NiMH) battery (4.8 V 2000 mA/h)
Charger: only chargers with code 68301X may be used to charge the batteries supplied with the Rehab/Theta/Physio stimulators.

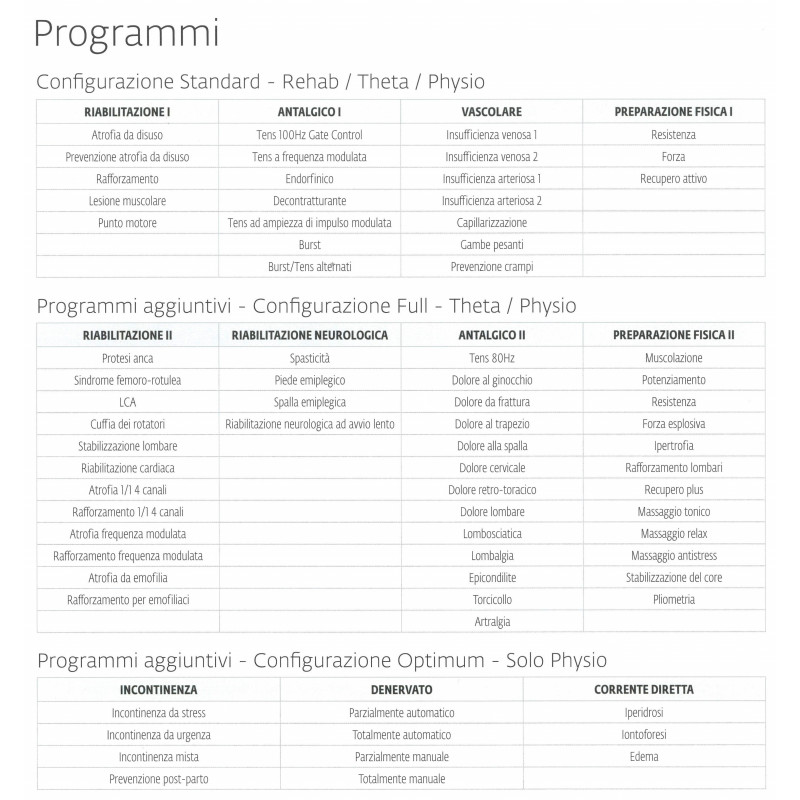

Neurostimulation programs: Rehab, Theta and Physio devices
Channels: four independent, separately adjustable channels
Pulse shape: compensated constant rectangular current
Maximum pulse intensity: 120 mA
Pulse intensity increments: manual adjustment of stimulation intensity from 0 to 999 (energy) in minimum increments of 0.25 mA
Pulse width: 30 to 400 μs
Maximum electrical charge per pulse: 96 microcoulombs (2x48 μC, compensated)
Standard pulse rise time: 3 μs (20%-80% of maximum current)
Pulse frequency: 1 to 150 Hz

Denervated muscle
Pulse shape: compensated, rectangular or triangular
Maximum pulse intensity: 30 mA
Minimum intensity increment: 0.25 mA
Pulse width: 10 μs - 100 μs
Pulse frequency: 1/30 Hz - 10 Hz

Iontophoresis, Hyperhidrosis
Pulse shape: direct current
Maximum intensity: 20 mA
Minimum intensity increment: 0.125 mA
Oedema: rectangular current, non-compensated
Pulse width: 150 μs
Maximum intensity: 120 mA
Minimum intensity increment: 1 mA
Pulse frequency: 100 Hz
Dimensions: 138 x 95 x 33 mm (height x width x depth)
Weight: 300 g incl. battery

The kit contains:
1 Physio device 1553300
1 Fast charger 683010
1 Battery 941213
1 Set of 4 pin cables 601132
1 Snap adapter kit 6111944
4 Mi cables 601160
1 Protective shell 690001
2 Packs of small electrodes (5x5 cm 1 snap) 42204
2 Packs of large electrodes (5x10 cm 2 snap) 42203
1 Set of ultra-flexible electrodes for denervated muscles 602110
1 Set of iontophoresis electrodes 642110
1 User manual and practical guide on CD/USB 13-8870
1 Quick start guide + warnings booklet 885932
1 Electrode placement booklet 4526645
1 Bottle of gel 602047
1 Motor point pen 980020
1 Carrying case 680054
1 Belt clip 949000
