REHAB is a 4-channel stimulator designed for physiotherapists and rehabilitation clinics that require standard use of electrostimulation. With simple programs, it allows pain to be managed, vascular disorders to be treated and muscles to be stimulated, meeting the main needs of professionals. Standard program configuration.

Features

2+2
Lets you choose a program for channels 1 and 2 and select another one from the list of 2+2 programs for channels 3 and 4. This makes it possible to treat two different body areas or two patients at the same time, or to combine TENS and NMES in a single treatment.

Skip
Manages session duration and skips directly to the next phase (recovery) when necessary.

Motor point pen
This useful tool, included in the kit together with the dedicated program, helps find the optimal electrode position.

I-Button
Allows you to adjust the intensity on all 4 channels simultaneously, access your 5 favourite programs directly or check statistics (number of contractions, intensity level) during sessions.

Pause mode
Pauses stimulation when electrodes need to be repositioned.

Programmability
Programs can be created and customised based on the patient's specific parameters.

Battery life and fast charging
Full-day battery life; with the charger included in the kit, a complete charging cycle takes a maximum of 2h30.

Pin-to-snap cables and adapters
The devices come with 4 pin cables + snap adapters to connect both pin electrodes and snap electrodes.

Warranty
The warranty is 3 years from the date of purchase.

Technical specifications
Medical device: Class IIa
Electrical protection: IP22
Electrical safety class: Class II, type BF
Complies with safety tests: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-10
Battery 941213: rechargeable nickel-metal hydride (NiMH) battery (4.8 V 2000 mA/h)
Charger: only chargers with code 68301X may be used to charge the batteries supplied with the Rehab/Theta/Physio stimulators.

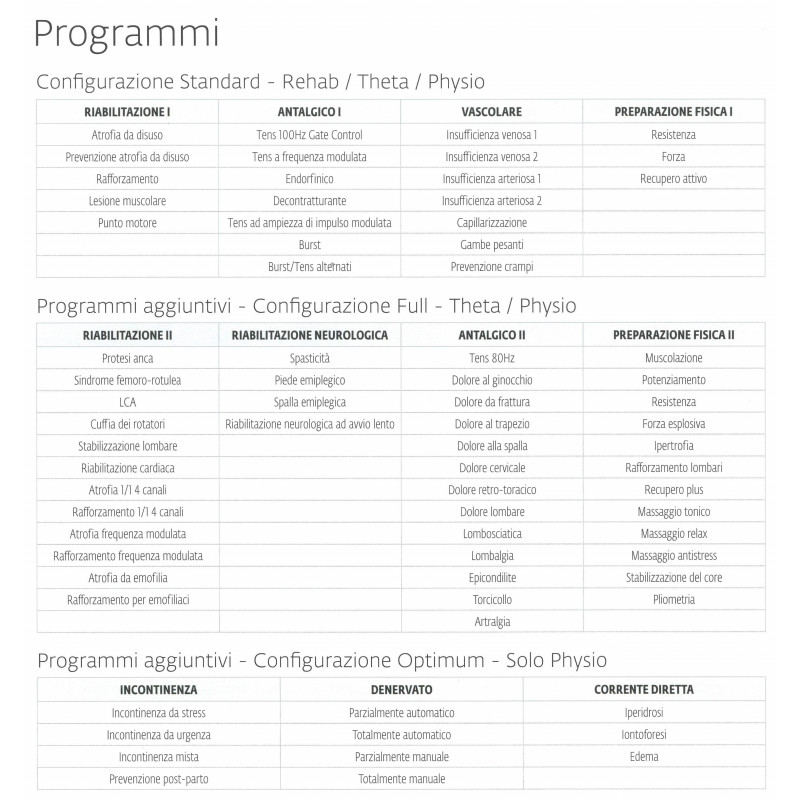

Neurostimulation programs: Rehab, Theta and Physio devices
Channels: four independent, separately adjustable channels
Pulse shape: compensated constant rectangular current
Maximum pulse intensity: 120 mA
Pulse intensity increments: manual adjustment of stimulation intensity from 0 to 999 (energy) in minimum increments of 0.25 mA
Pulse width: 30 to 400 μs
Maximum electrical charge per pulse: 96 microcoulombs (2x48 μC, compensated)
Standard pulse rise time: 3 μs (20%-80% of maximum current)
Pulse frequency: 1 to 150 Hz
Dimensions: 138 x 95 x 33 mm (height x width x depth)
Weight: 300 g incl. battery

The kit contains (included in the package):
1 Rehab device 1551000
1 Fast charger 683010
1 Battery 941213
1 Set of 4 pin cables 601132
1 Snap adapter kit 6111944
1 Protective shell 690001
2 Packs of small electrodes (5x5 cm 1 snap) 42204
2 Packs of large electrodes (5x10 cm 2 snap) 42203
1 User manual and practical guide on CD/USB 13-8870
1 Quick start guide + warnings booklet 885932
1 Electrode placement booklet 4526645
1 Bottle of gel 602047
1 Motor point pen 980020
1 Carrying bag 680055
1 Belt clip 949000
